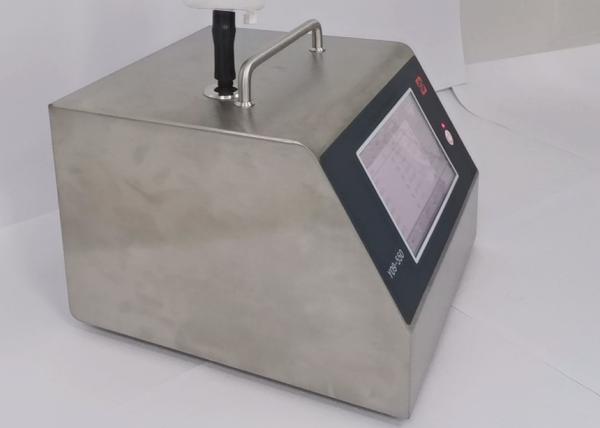

Y09-550 Laser Dust Particle Counter is a portable device with
built-in lithium battery. As the particle count, the 0.3, 0.5
and1,3,5,10 um channel particle data can be displayed in real time,
and the cumulative particle number of six channels can be displayed
after a sampling period. The dust particle counter has built-in
long-life laser diode, light collection elliptical lens and unique
optical system to provide concentration measurement range. The dust
particle counter has built-in 16.8V lithium-ion battery pack,
vacuum pump, isokinetic sampling head, micro processing circuit and
computer interface. All information is displayed on the 7 inch
touch screen.
Specification of particle counter
| Model | Y09-5100
| Y09-550
| Y09-350 |
| Outside Dim | 268×295×192(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm | 0.3,0.5,1,3,5,10μm |
| Flow Rate | 100L/min | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | 3 hours | 5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
Related products

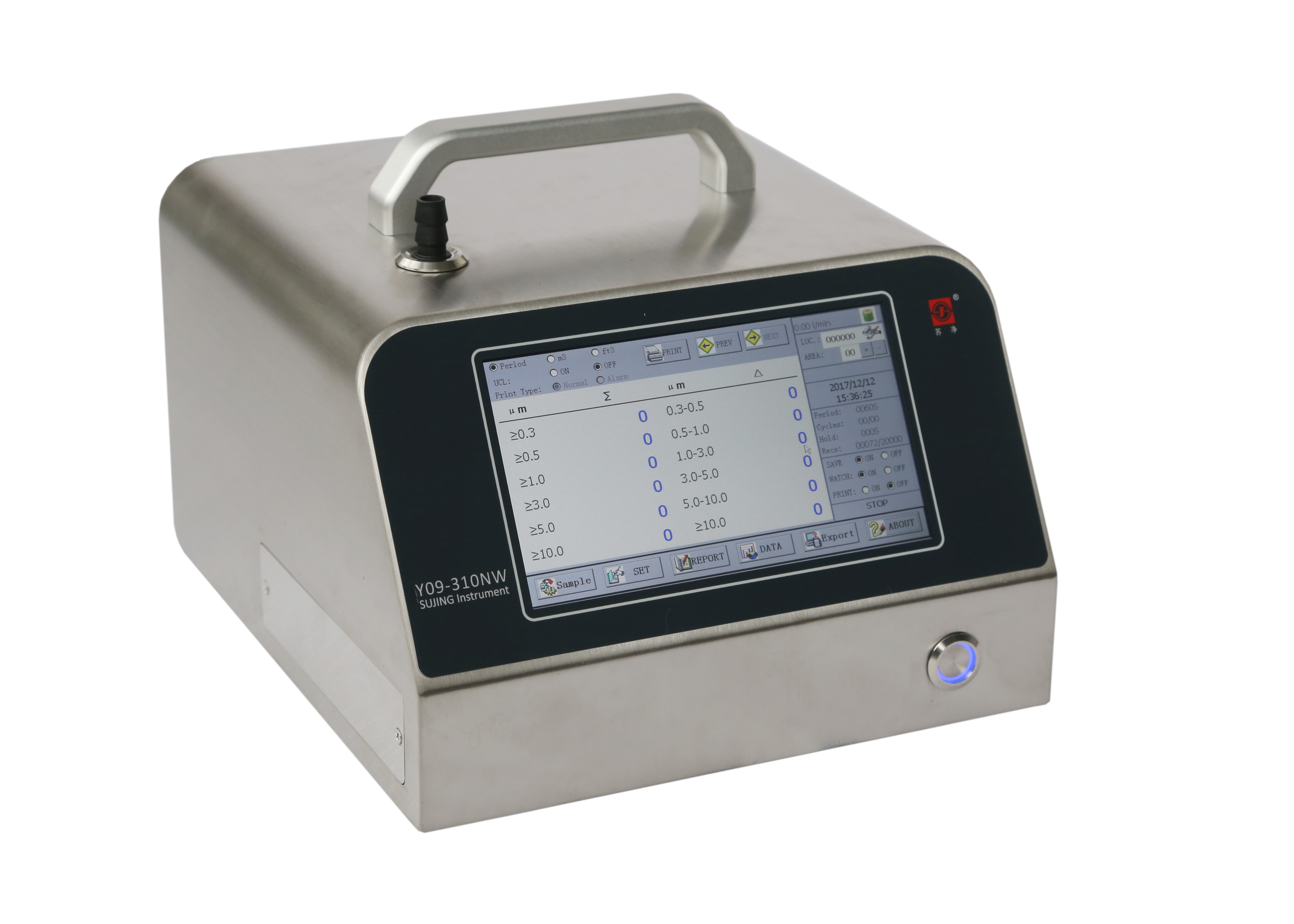

Model | Y09-110 | Y09-310NW | Y09-3016HW |
Picture |
|
|
|
| Size Channels | 0.1,0.2,0.3,0.5,0.7,1.0μm | 0.3,0.5,1,3,5,10μm |
| Flow Rate | 28.3L/min | 2.83L/min |
| Display | 7inch Color Screen | 4.3inch Color Screen |
