Air Quality 24hours Cleanroom Monitoring System For Pharma Factory
The robust and flexible system architecture ensures cleanroom
environmental monitoring data is protected and available whenever
there is a need for product release and reporting. Solutions for
all cleanroom sizes and classes to fit most budgets.
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature,
humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors

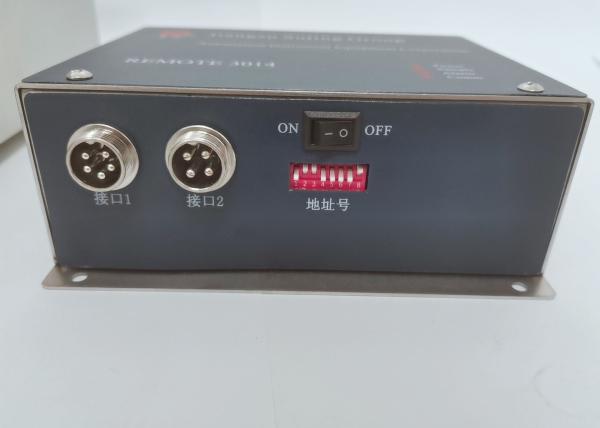

REMOTE 3014
2.83LPM (0.1CFM) built-in pump
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere
Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE3102
28.3LPM (1.0CFM)
| Outside Dim | 100*45*60 mm³(Wide*Deep*High) |
| Power Source | DC9V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environment | Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere
Pressure:86-106Kpa |
| External Vacuum | 60Kpa |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
FKC-III Microbial Air Sampler
| Sampling flow rate | 100L/min or 28.3L/min |
| Sample volume | 10-9999L |
| Sampling delay | 1-60 seconds |
| Collection methods | Remote control or manually |
| Battery | Lithium Battery 16.8V 8.8Ah, can work 10 hours |
| Weight | 6kg |
| Plate size | 90*15mm |
| Display window | High brightness LCD display |
| Operating environment | Temperature: 0 - 50 degree celsius, humidity: 10-90% |
