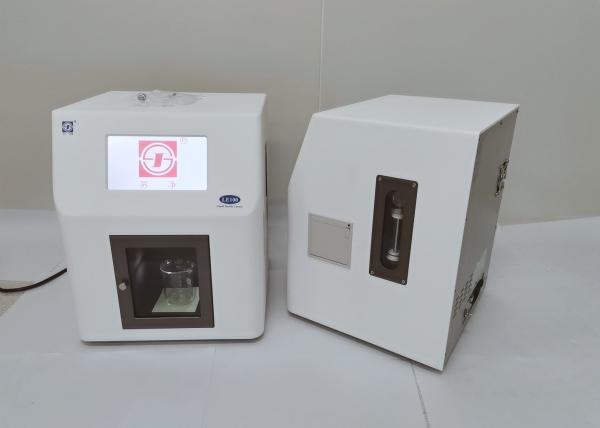

LE100 Liquid Particle Counter Built-In Magnetic Stirrer

LE100 Liquid particle counter have an integrated syringe sampler and optical particle counting system. Its easy-to-use Windows based software interface is designed to meet the international regulatory EP and JP, as well as USP 788 requirements. Following a quality standard of reliability and dependability, SUJING Worldwide Solutions developed the LE100 liquid particle counter using the latest in laser optical particle counter technology. The LE100 uses a high accuracy syringe pump flow control system and a high sample volume sensor.

Specification of liquid particle counter

Particle size range: 2~400μm

Number of channel sizes

24 channels, 2~100μm sizes can be set arbitrarily by user

Accuracy: ±10%

Resolution: > 90% (2015 CP), <10%(USP, ISO21501)

Max. sample concentration: 10000 particles/ml

Syringe specifications: 1ml, 5ml, 10ml^*, 25ml

Sample flow rate: 20 ml/min

Sample accuracy: ±1%

Min. Sample volume: 0.2ml^**

Sensor material

316 stainless steel, quartz glass, TEFLON

Display

7inch LCD color touch screen

Data output

RS232 port, USB, built-in printer

Power supply: AC 100~240V, 50/60HZ

Dimension: 320(l) ×309(w) ×394(H) mm

Weight: 11.0kg

Operating environment

Temperature 5 -40 ℃; Relative humidity 0 ~ 95%, non-condensing

Sample stirring method

Magnetic stirring (adjustable)

Software system: LE-Assistant

* Standard configuration

** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml

Suzhou Sujing Automation Instrument Equipment Co., Ltd. is specializing in the particle contamination measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Jiangsu Sujing Purification Group Co., Ltd. Sujing Group is one of China's strongest state-controlled businesses and the largest domestic bases for solutions in technological innovation, manufacturing and projects of air and gas purification and energy saving environmental protection technology. Sujing Group is a new & high technology enterprise and one of 520 nation key enterprises in which Jiangsu Research Center and post-doctoral workstation are set. Sujing Group is a "National Innovative Pilot Enterprise" and a "National High and New Technology Enterprise" with a national enterprise technology center and a post-doctoral research work station built inside.

The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven. Sujing instrument is an ISO9001 registered company

Sujing instrument are available in the form of standard models, special designs and complete systems.

Service are available in the form of calibration, special engineering and application assistance.

Sujing instrument is committed to continually enhancing and expanding our products and service.
