Injections Testing Pharma Particle Counter AC 240V USP 788

Ask Lasest Price
Brand Name :	SUJING
Model Number :	LE100
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	800/per month
Delivery Time :	5 work days

Add to Cart

Product Details
Company Profile

Injections Testing Pharma Particle Counter AC 240V USP 788

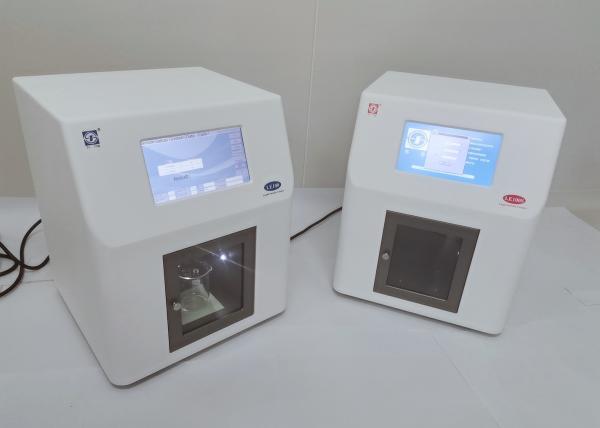

LE100 Liquid Particle Counter Injections Testing In Pharma

Liquid Particle Counter for USP 788 sizes and counts suspended particulate matter in a wide range of liquids, including parenterals, to meet all current U.S., European and Japanese Pharmacopoeia standards. When it comes to particle monitoring quality control for liquid drug manufacturers, it’s important to meet regulations while minimizing waste.

Technical parameters	liquid particle counter
Particle size range	2-400 μm
Particle size channel	24
Maximum detection concentration	10000 particles/ml
Accuracy	±10%
Repeatability	RSD<2% (particles>1000 per ml, 5ml sample)
Resolution	<10% (U.S.P, ISO 21501)
Syringe specifications	1ml, 5ml, 10ml*, 25ml
Sampling speed	20 ml/min*
Sample volume accuracy	±1%
Minimum sampling volume	0.2ml**
Sensor material	316 stainless steel, quartz glass, PTFE, NBR
Power supply	AC 100~240V, 50/60HZ
Mixing method	Magnetic stirrer (speed adjustable)
Data output	RS232 port; USB; built-in thermal printer
Display output	7 inch LCD color touch screen
Size	320(L)×309(W)×394(H) mm
Weight	11.0 kg
Operating environment	Temperature 10-40 ℃; RH 0 ~ 95% non-condensing
Software system	LE-Assistant (optional)
* Standard configuration ** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml

Overview descriptions of liquid particle counter

8.Exhaust fan	1. Display
9.heat emission hole	2. Door of sample chamber
10. Power switch	3. Thermal printer
11. AC power outlet and fuse	4. Syringe
12. R232 port	5. Sample tube
13. Sample drain	6. LED chamber light
14. USB port	7. Stirrer

Components of liquid particle counter

The instrument ×1	Power cord ×1
Fuse ×1	Detecting cup ×1
Stir rod ×1	Operation manual ×1
Drain line tube ×1	Testing report ×1
Touch pen ×1	Quality certificate ×1
Printing paper ×1	Warranty card ×1
Packing list ×1

Features of liquid particle counter

Built-in USP testing standards
Precision syringe sampling device, accurate sampling volume, stable speed
Built-in calibration curve, in line with calibration requirements of ISO-21501
Intelligent automatic detection and automatic calibration function, instrument performance judgment and calibration
Use of magnetic stirring, stirring speed adjustable
USB interface direct export data, paperless electronic print report
Powerful application software development support. Easy to connect to the laboratory information management system etc.
The LE-Assistant software implements PC control and provides professional data processing
Compliant with FDA 21 CFR part 11 "Electronic Records and Signatures" and user rating management

Application of liquid particle counter

Injections testing under CP, USP, EP, JP and other standards
Cleanliness detecting of medical equipment / parts
Filtration efficiency detection
Laboratory water testing
