    Lab Instrument 1CFM Portable Air Particle Counter Y09-310NW

    Ask Lasest Price
    Brand Name : SUJING
    Model Number : Y09-310NW
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 500unit/per month
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

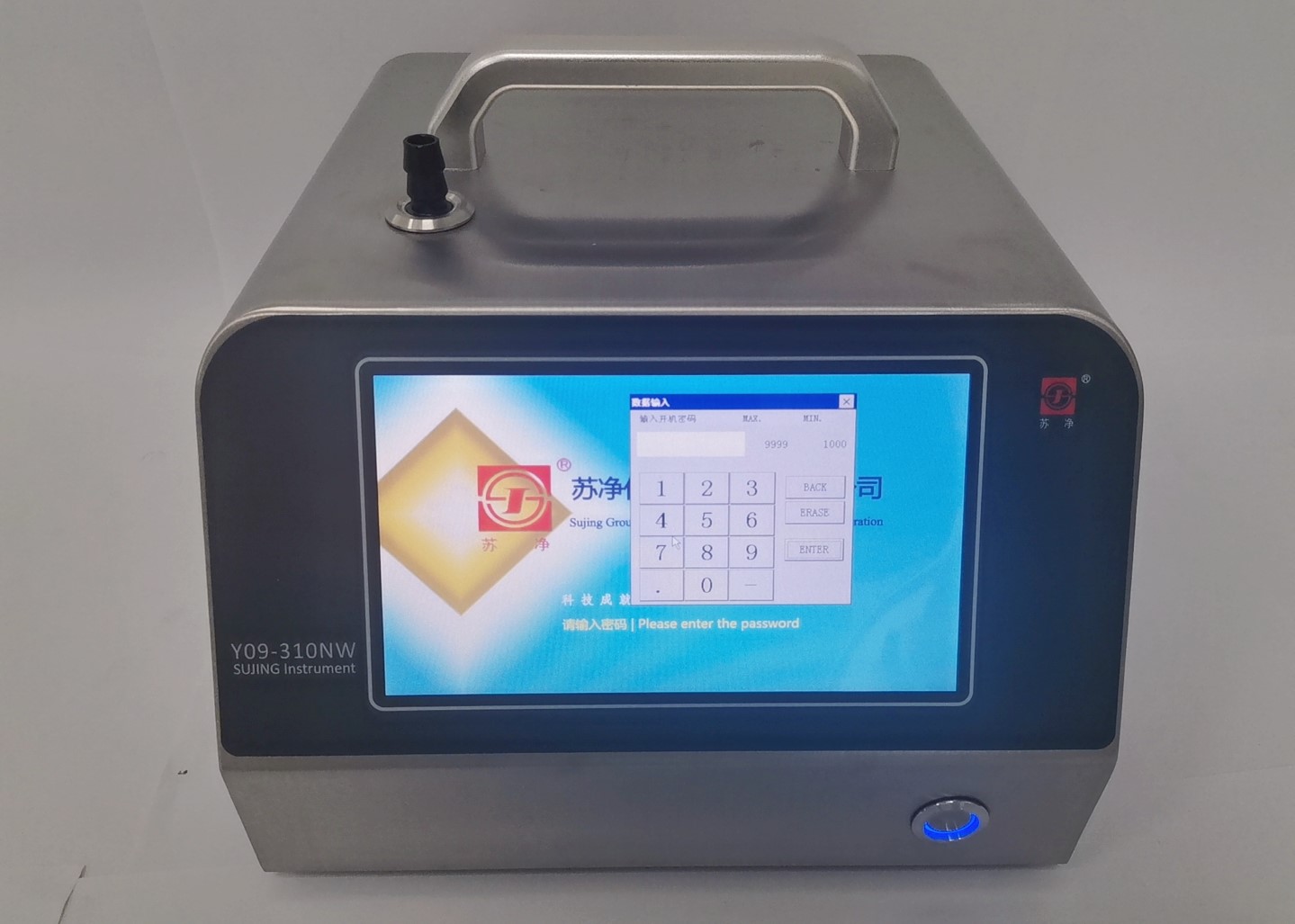

    Lab Instrument 1CFM Portable Air Particle Counter Y09-310NW

    1CFM Portable Dust Particle Counter Lab Instrument


    The Y09-310NW is the industry’s 28.3 LPM 0.3 micron portable designed for continuous use.



    The specification of portable particle counter


    Outside Dim245*268*160 (mm3); (Wide*Deep*High)
    Display7 inch touch screen
    Weight3.5Kg
    Max. Consumption80W
    Power SourceDC16.8V built-in Lithium Battery; AC 220V ± 10%
    Size Channels0.3, 0.5, 1, 3, 5, 10 μm
    Calculation95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet)
    Flow Rate28.3L/min (Imported Pump)
    Sample Time6s---999999s (Selectable)
    Cycles0-99
    Hold Time0-9999s
    Delay Time5-999s
    Zero Court<=10min
    Location1-99
    AlarmISO Class
    PrinterBuilt-in Thermal Printer
    Data Storage20000Samples /300 Samples of UCL (With PC Software)
    Light SourceLaser Diode (30,000 hours Mean Time Between Failures)
    Counting efficiency50% @ 0.3μm and 100% for particles >0.45μm (ISO21501)
    Maximum Rated Particle Concentration35000 particles/L
    Operating TimeMore than 5.5 hours
    Environmental TemperatureTemperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa

    Features of air particle counter

    1. Sample volume 28.3 LPM (1.0CFM).
    2. Simultaneously display of up to six particle sizes

    3. 20000-record data storage memory

    4. Meet the requirements of ISO14644-1:2015
